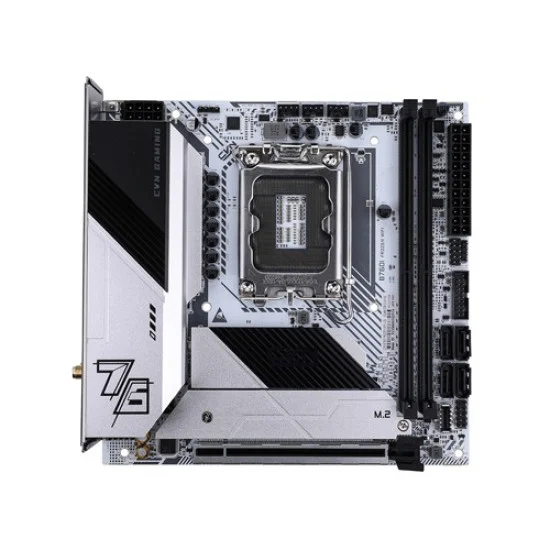

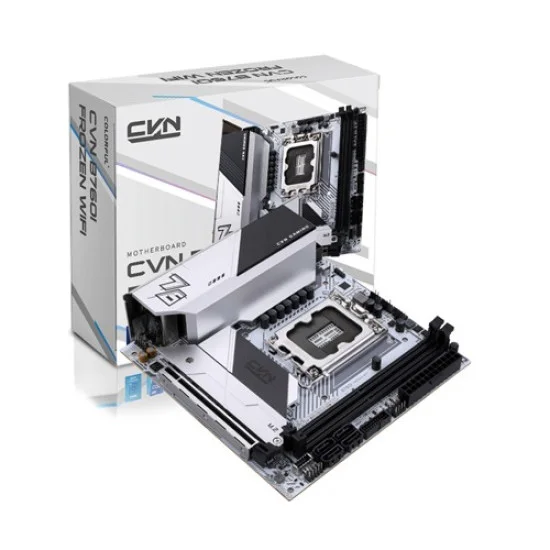

Colorful CVN B760I FROZEN WIFI V20 DDR4 ITX Motherboard

Model:CVN B760I FROZEN WIFI V20

Chipset: Intel B760
Audio: 5.1 Channel sound card
BIOS: 128M UEFI
2 PCIe 4.0 x4 M.2 SSD slots

$ 185.04 USD

Add to wish list

Compare this product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Specification Description Specification Review

Spcification

Basic Information

Supported CPU: Support The 14th/13th And 12th Generation Intel Adapting To The LGA 1700 Slot Of The Motherboard Core TM,Pentium And Cylon Processor

Chipset: Intel B760

BIOS: 128M UEFI, Supporting Multiple Languages

Audio: 5.1 Channel Sound Card

Form Factor: ITX170mm X 170mm

Expansion Slots

PCI: 1 PCIe 5.0 X16 Slot

Memory

Type: DDR4

Slots: A Total Of 2 M.2 Slots And 4 SATA 6Gb/S Hard Disk Interfaces Are Supported,Support The Creation Of RAID 0, RAID 1, RAID 5, And RAID 10 Disk Arrays Using SATA Hard Disk Devices- M.2_ 1 Slot: Support 2280 Specification M.2 SSD (PCIe 4.0 X4, CPU Channel)- M.2_ 2 Slots: Support 2280 Specification M.2 SSD (PCIe 4.0 X4, PCH Channel)

Supported Memory: Two DDR4 Memory Sockets Are Provided, Which Can Support Up To 64 GB Of Memory(A Single Socket Can Support Up To 32 GB Of Memory)- Support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133MHz Of Memory- Support Intel ® Extreme Memory Profile (XMP) Memory Technology- Supports Dual Channel Memory Technology

Connector & Ports

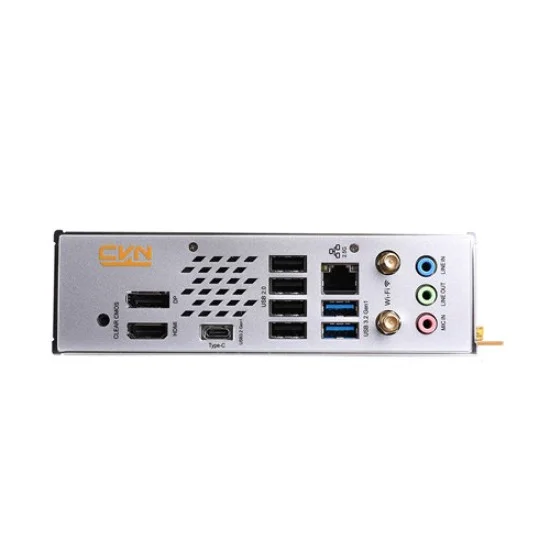

LAN Port (S): RTL8125 2.5Gbit Network Card, AX201/AX200 WiFi 6 Wireless Network Card, Bluetooth 5.2Internal I/O PortsRear I/O Interface:- 4 USB 2.0 Interfaces- 2 USB 3.2 Gen 1 Type-A Interfaces- 1 USB 3.2 Gen 1 Type-C Interface- 1 DP 1.2 Interface, Supporting Up To 4K 60Hz Resolution- 1 HDMI 2.0 Interface, Up To 4K 60Hz Resolution- 1 2.5G Network Interface- 2 Wi-Fi 6 Antenna Interfaces- 3 Audio Interfaces (Audio Input/Audio Output/Microphone)- 1 Clear CMOS ButtonOn Board Device Interface:- 1 CPU Fan Pin- 1 System Fan Pin- 1 Water-Cooled Pump Pin- 1 USB 2.0 Pin Can Expand 2 USB 2.0 Type-A Interfaces- 1 USB 3.2 Gen 1 Pin Can Expand 2 USB 3.2 Gen 1 Type-A Interfaces- 1 USB 3.2 Gen 1 Type-C Slot Can Expand 1 USB 3.2 Gen 1 Type-C Interface- 1 5V 3-Pin ARGB Pin- 1 Front Audio Pin- 1 Front Panel Pin- 1 Speaker Pin

Warranty Information

Warranty: 3 Years

Colorful CVN B760I FROZEN WIFI V20 DDR4 ITX Motherboard

The Colorful CVN B760I FROZEN WIFI V20 DDR4 ITX Motherboard is a feature-packed and compact motherboard designed to meet the demands of modern computing. This ITX (Mini-ITX) motherboard measures 170mm x 170mm, making it an ideal choice for small form-factor builds where space is limited. One of the standout features of this motherboard is its wide CPU compatibility. It supports the 14th, 13th, and 12th generation Intel processors, adapting to the LGA 1700 slot of the motherboard. This means you can pair it with a variety of Intel Core, Pentium, and Celeron processors for versatile performance options. The motherboard is powered by the Intel B760 chipset and boasts a 128M UEFI BIOS that supports multiple languages, making it accessible to a global audience. It also features a 5.1 channel sound card for immersive audio experiences. When it comes to memory, the Colorful CVN B760I offers excellent flexibility with two DDR4 memory sockets supporting up to 64GB of memory in total, with a single socket supporting up to 32GB. It supports a wide range of memory speeds, including overclocked options, and Intel Extreme Memory Profile (XMP) technology for optimal memory performance. For storage, it provides two M.2 slots and four SATA 6Gb/s hard disk interfaces. You can create RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices, offering redundancy and performance benefits. Connectivity is a strong suit of this motherboard with an impressive set of I/O ports, including 2.5Gbit LAN, AX201/AX200 WiFi 6 wireless, and Bluetooth 5.2. The rear I/O interface offers various USB ports, including USB 3.2 Gen 1 Type-A and Type-C, as well as display options with DP 1.2 and HDMI 2.0 for 4K 60Hz resolution. It also includes multiple audio interfaces and a clear CMOS button for convenience. The motherboard's on-board device interface provides CPU and system fan pins, water-cooled pump pin, and expandable USB interfaces. It's also equipped with RGB and audio pins for customization.
